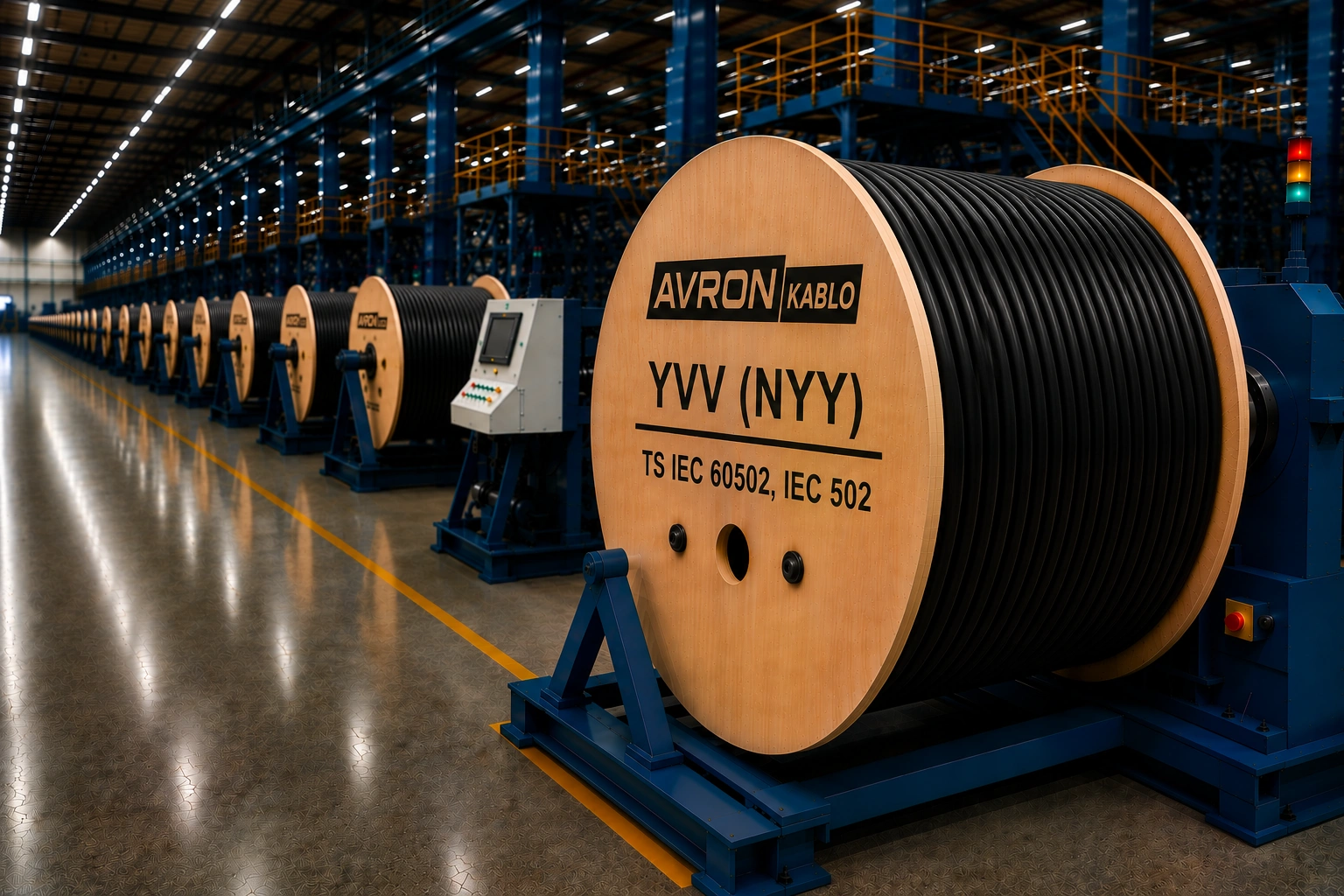

YVV (NYY) Cable Production

YVV (NYY)
Cable

YVV (NYY) cable is a power cable with a copper conductor, PVC insulation, PVC filler, and PVC outer sheath. Commonly used as a network, lighting, and power cable, it provides safe power transmission in indoor, outdoor, underground, and cable duct installations where excessive mechanical stress is not present.

Technical Specifications Product Features
YVV (NYY) Cable TS IEC 60502 IEC 502 VDE 0276-603 BS 6346
What Is YVV (NYY) Cable? Technical Specifications Applications
70°C Max. Operating Temperature
PVC Insulation & Sheath
160°C Short Circuit Temperature
View Technical Specifications
AVRON CABLE

YVV (NYY) CABLE
TECHNICAL SPECIFICATIONS

YVV (NYY) Cable
Type
:
YVV (NYY)
Standards
:
TS IEC 60502, IEC 502, VDE 0276-603, BS 6346

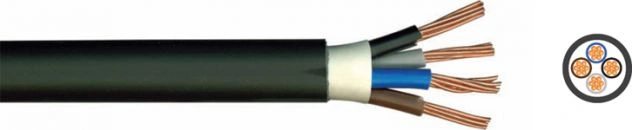

Construction
:
1- Copper conductor
2- PVC insulation
3- PVC filler
4- PVC outer sheath
Applications
:
Used as a network, lighting, and power cable in indoor, outdoor, underground, and cable duct installations where excessive mechanical stress is not present.
Technical Data
:
Max. operating temperature: 70°C
Max. short-circuit temperature: 160°C

What Is YVV (NYY) Cable?

YVV (NYY) cable is a low-voltage power cable with a copper conductor, PVC insulation, PVC filler, and PVC outer sheath. It is widely used in network, lighting, and power applications to ensure safe and reliable power transmission.

Thanks to its durable construction, YVV (NYY) cable is suitable for indoor and outdoor installations, underground applications, and cable ducts, making it a preferred choice for power distribution systems.

Nominal Kesit
No x mm²		 İletken Tel Sayısı ve Çapı
No x mm		 Standart Et Kalınlığı (İzole)
mm		 Standart Et Kalınlığı (Kılıf)
mm		 Yaklaşık Dış Çap
max. mm		 20°C'de Maks. İletken DC Direnci
Ω/km		 Yaklaşık Toplam Ağırlık
kg/km		 30°C'de Maks. Akım Taşıma Kapasitesi
Pipe A - Air A
Num. of Cores and Nominal Cross Section
No x mm²		 Number of Wires and Diameter
No x mm		 Thickness of Insulation
mm		 Thickness of Sheath
mm		 Approx. Overall Diameter
max. mm		 Conductor DC Resistance at 20°C
Ω/km		 Approx. Total Weight
kg/km		 Max. Current Carrying Capacity at 30°C
Pipe A - Air A
Номинальное сечение
No x мм²		 Количество проволок и диаметр
No x мм		 Толщина изоляции
мм		 Толщина оболочки
мм		 Приблизительный наружный диаметр
макс. мм		 Сопротивление проводника при 20°C
Ом/км		 Приблизительный общий вес
кг/км		 Макс. токовая нагрузка при 30°C
Pipe A - Air A
1 x 42,191,01,47,204,618745 - 37
1 x 62,681,01,47,703,0810957 - 48
1 x 107 x 1,321,01,48,901,8316678 - 66
1 x 167 x 1,681,01,410,001,15234103 - 89
1 x 257 x 2,191,21,411,030,727341137 - 118
2 x 1,51,350,81,88,4012,112732 - 20
2 x 2,51,730,81,89,607,4116042 - 27
2 x 42,191,01,810,604,6123354 - 37
2 x 62,681,01,811,703,0829568 - 48
2 x 107 x 1,321,01,812,801,8346990 - 66
2 x 167 x 1,681,01,818,201,15652116 - 89
3 x 1,51,350,81,88,9012,114826 - 18
3 x 2,51,730,81,810,207,4119134 - 25
3 x 42,191,01,812,604,6128044 - 34
3 x 62,681,01,813,803,0836156 - 43
3 x 107 x 1,321,01,817,001,8357975 - 60
3 x 167 x 1,681,01,819,401,1582098 - 80
4 x 1,51,350,81,89,7012,117826 - 18
4 x 2,51,730,81,811,207,4124134 - 25
4 x 42,191,01,812,804,6137544 - 34
4 x 62,681,01,814,203,0845656 - 43
4 x 107 x 1,321,01,818,801,8373175 - 60
4 x 167 x 1,681,01,821,401,15103698 - 80
5 x 1,51,350,81,811,6012,121826 - 18
5 x 2,51,730,81,812,707,4128534 - 25
5 x 42,191,01,813,804,6137544 - 34
5 x 62,681,01,816,603,0854856 - 43
5 x 107 x 1,321,01,820,601,8389175 - 60
5 x 167 x 1,661,01,823,401,15127698 - 80

YVV (NYY) Cable Technical Specifications

  • Type: YVV (NYY)
  • Standards: TS IEC 60502, IEC 502, VDE 0276-603, BS 6346
  • Conductor: Copper conductor
  • Insulation: PVC insulation
  • Filler: PVC filler
  • Outer Sheath: PVC outer sheath
  • Operating Temperature: Maximum 70°C
  • Short-Circuit Temperature: Maximum 160°C
Nominal Kesit
No x mm²		 İletken Tel Sayısı ve Çapı
No x mm		 Standart Et Kalınlığı (İzole)
mm		 Standart Et Kalınlığı (Kılıf)
mm		 Yaklaşık Dış Çap
max. mm		 20°C'de Maks. İletken DC Direnci
Ω/km		 Yaklaşık Toplam Ağırlık
kg/km		 30°C'de Maks. Akım Taşıma Kapasitesi
Pipe A - Air A
Num. of Cores and Nominal Cross Section
No x mm²		 Number of Wires and Diameter
No x mm		 Thickness of Insulation
mm		 Thickness of Sheath
mm		 Approx. Overall Diameter
max. mm		 Conductor DC Resistance at 20°C
Ω/km		 Approx. Total Weight
kg/km		 Max. Current Carrying Capacity at 30°C
Pipe A - Air A
Номинальное сечение
No x мм²		 Количество проволок и диаметр
No x мм		 Толщина изоляции
мм		 Толщина оболочки
мм		 Приблизительный наружный диаметр
макс. мм		 Сопротивление проводника при 20°C
Ом/км		 Приблизительный общий вес
кг/км		 Макс. токовая нагрузка при 30°C
Pipe A - Air A
1 x 42,191,01,47,204,618745 - 37
1 x 62,681,01,47,703,0810957 - 48
1 x 107 x 1,321,01,48,901,8316678 - 66
1 x 167 x 1,681,01,410,001,15234103 - 89
1 x 257 x 2,191,21,411,030,727341137 - 118
2 x 1,51,350,81,88,4012,112732 - 20
2 x 2,51,730,81,89,607,4116042 - 27
2 x 42,191,01,810,604,6123354 - 37
2 x 62,681,01,811,703,0829568 - 48
2 x 107 x 1,321,01,812,801,8346990 - 66
2 x 167 x 1,681,01,818,201,15652116 - 89
3 x 1,51,350,81,88,9012,114826 - 18
3 x 2,51,730,81,810,207,4119134 - 25
3 x 42,191,01,812,604,6128044 - 34
3 x 62,681,01,813,803,0836156 - 43
3 x 107 x 1,321,01,817,001,8357975 - 60
3 x 167 x 1,681,01,819,401,1582098 - 80
4 x 1,51,350,81,89,7012,117826 - 18
4 x 2,51,730,81,811,207,4124134 - 25
4 x 42,191,01,812,804,6137544 - 34
4 x 62,681,01,814,203,0845656 - 43
4 x 107 x 1,321,01,818,801,8373175 - 60
4 x 167 x 1,681,01,821,401,15103698 - 80
5 x 1,51,350,81,811,6012,121826 - 18
5 x 2,51,730,81,812,707,4128534 - 25
5 x 42,191,01,813,804,6137544 - 34
5 x 62,681,01,816,603,0854856 - 43
5 x 107 x 1,321,01,820,601,8389175 - 60
5 x 167 x 1,661,01,823,401,15127698 - 80

YVV (NYY) Cable Applications

YVV (NYY) cable is used in power distribution networks, lighting installations, energy distribution lines, and as a power cable. It is preferred for indoor and outdoor applications where excessive mechanical stress is not present.

Under suitable conditions, YVV (NYY) cable can also be installed underground and in cable ducts, providing reliable power transmission in industrial facilities, commercial buildings, and residential projects.

Nominal Kesit
No x mm²		 İletken Tel Sayısı ve Çapı
No x mm		 Standart Et Kalınlığı (İzole)
mm		 Standart Et Kalınlığı (Kılıf)
mm		 Yaklaşık Dış Çap
max. mm		 20°C'de Maks. İletken DC Direnci
Ω/km		 Yaklaşık Toplam Ağırlık
kg/km		 30°C'de Maks. Akım Taşıma Kapasitesi
Pipe A - Air A
Num. of Cores and Nominal Cross Section
No x mm²		 Number of Wires and Diameter
No x mm		 Thickness of Insulation
mm		 Thickness of Sheath
mm		 Approx. Overall Diameter
max. mm		 Conductor DC Resistance at 20°C
Ω/km		 Approx. Total Weight
kg/km		 Max. Current Carrying Capacity at 30°C
Pipe A - Air A
Номинальное сечение
No x мм²		 Количество проволок и диаметр
No x мм		 Толщина изоляции
мм		 Толщина оболочки
мм		 Приблизительный наружный диаметр
макс. мм		 Сопротивление проводника при 20°C
Ом/км		 Приблизительный общий вес
кг/км		 Макс. токовая нагрузка при 30°C
Pipe A - Air A
1 x 42,191,01,47,204,618745 - 37
1 x 62,681,01,47,703,0810957 - 48
1 x 107 x 1,321,01,48,901,8316678 - 66
1 x 167 x 1,681,01,410,001,15234103 - 89
1 x 257 x 2,191,21,411,030,727341137 - 118
2 x 1,51,350,81,88,4012,112732 - 20
2 x 2,51,730,81,89,607,4116042 - 27
2 x 42,191,01,810,604,6123354 - 37
2 x 62,681,01,811,703,0829568 - 48
2 x 107 x 1,321,01,812,801,8346990 - 66
2 x 167 x 1,681,01,818,201,15652116 - 89
3 x 1,51,350,81,88,9012,114826 - 18
3 x 2,51,730,81,810,207,4119134 - 25
3 x 42,191,01,812,604,6128044 - 34
3 x 62,681,01,813,803,0836156 - 43
3 x 107 x 1,321,01,817,001,8357975 - 60
3 x 167 x 1,681,01,819,401,1582098 - 80
4 x 1,51,350,81,89,7012,117826 - 18
4 x 2,51,730,81,811,207,4124134 - 25
4 x 42,191,01,812,804,6137544 - 34
4 x 62,681,01,814,203,0845656 - 43
4 x 107 x 1,321,01,818,801,8373175 - 60
4 x 167 x 1,681,01,821,401,15103698 - 80
5 x 1,51,350,81,811,6012,121826 - 18
5 x 2,51,730,81,812,707,4128534 - 25
5 x 42,191,01,813,804,6137544 - 34
5 x 62,681,01,816,603,0854856 - 43
5 x 107 x 1,321,01,820,601,8389175 - 60
5 x 167 x 1,661,01,823,401,15127698 - 80

Advantages of YVV (NYY) Cable

  • Provides reliable power transmission thanks to its copper conductor construction.
  • Offers high durability with its PVC insulation, PVC filler, and PVC outer sheath.
  • Suitable for both indoor and outdoor electrical installations.
  • Can be used in underground installations and cable duct applications.
  • Widely used in power distribution networks, lighting systems, and power transmission applications.
  • Manufactured in accordance with TS IEC 60502, IEC 502, VDE 0276-603, and BS 6346 standards.
Nominal Kesit
No x mm²		 İletken Tel Sayısı ve Çapı
No x mm		 Standart Et Kalınlığı (İzole)
mm		 Standart Et Kalınlığı (Kılıf)
mm		 Yaklaşık Dış Çap
max. mm		 20°C'de Maks. İletken DC Direnci
Ω/km		 Yaklaşık Toplam Ağırlık
kg/km		 30°C'de Maks. Akım Taşıma Kapasitesi
Pipe A - Air A
Num. of Cores and Nominal Cross Section
No x mm²		 Number of Wires and Diameter
No x mm		 Thickness of Insulation
mm		 Thickness of Sheath
mm		 Approx. Overall Diameter
max. mm		 Conductor DC Resistance at 20°C
Ω/km		 Approx. Total Weight
kg/km		 Max. Current Carrying Capacity at 30°C
Pipe A - Air A
Номинальное сечение
No x мм²		 Количество проволок и диаметр
No x мм		 Толщина изоляции
мм		 Толщина оболочки
мм		 Приблизительный наружный диаметр
макс. мм		 Сопротивление проводника при 20°C
Ом/км		 Приблизительный общий вес
кг/км		 Макс. токовая нагрузка при 30°C
Pipe A - Air A
1 x 42,191,01,47,204,618745 - 37
1 x 62,681,01,47,703,0810957 - 48
1 x 107 x 1,321,01,48,901,8316678 - 66
1 x 167 x 1,681,01,410,001,15234103 - 89
1 x 257 x 2,191,21,411,030,727341137 - 118
2 x 1,51,350,81,88,4012,112732 - 20
2 x 2,51,730,81,89,607,4116042 - 27
2 x 42,191,01,810,604,6123354 - 37
2 x 62,681,01,811,703,0829568 - 48
2 x 107 x 1,321,01,812,801,8346990 - 66
2 x 167 x 1,681,01,818,201,15652116 - 89
3 x 1,51,350,81,88,9012,114826 - 18
3 x 2,51,730,81,810,207,4119134 - 25
3 x 42,191,01,812,604,6128044 - 34
3 x 62,681,01,813,803,0836156 - 43
3 x 107 x 1,321,01,817,001,8357975 - 60
3 x 167 x 1,681,01,819,401,1582098 - 80
4 x 1,51,350,81,89,7012,117826 - 18
4 x 2,51,730,81,811,207,4124134 - 25
4 x 42,191,01,812,804,6137544 - 34
4 x 62,681,01,814,203,0845656 - 43
4 x 107 x 1,321,01,818,801,8373175 - 60
4 x 167 x 1,681,01,821,401,15103698 - 80
5 x 1,51,350,81,811,6012,121826 - 18
5 x 2,51,730,81,812,707,4128534 - 25
5 x 42,191,01,813,804,6137544 - 34
5 x 62,681,01,816,603,0854856 - 43
5 x 107 x 1,321,01,820,601,8389175 - 60
5 x 167 x 1,661,01,823,401,15127698 - 80
Sıkça Sorulan Sorular

YVV (NYY) Kablo Hakkında

Avron Cable üretimindeki YVV (NYY) Kablo kullanım alanları, teknik özellikleri, standartları, PVC izoleli yapısı ve enerji iletimindeki kullanım avantajları hakkında en çok merak edilen soruların cevaplarını aşağıda bulabilirsiniz.

YVV (NYY) kablo; bakır iletken, PVC izole, PVC dolgu ve PVC dış kılıf yapısına sahip alçak gerilim enerji kablosudur. Şebeke, aydınlatma ve güç iletim uygulamalarında güvenli enerji aktarımı sağlamak amacıyla kullanılmaktadır.
YVV (NYY) kablo; şebeke, aydınlatma ve güç kablosu olarak dahili ve harici tesisatlarda, toprak altında ve kablo kanallarında kullanılmaktadır.
YVV (NYY) kablo; bakır iletken, PVC izole, PVC dolgu ve PVC dış kılıf yapısına sahiptir. Maksimum çalışma sıcaklığı 70°C, maksimum kısa devre sıcaklığı ise 160°C'dir.
Evet. YVV (NYY) kablo, uygun döşeme koşullarında toprak altında kullanılabilmektedir. Ayrıca kablo kanallarında ve dış ortam uygulamalarında da tercih edilmektedir.
YVV (NYY) kablo; TS IEC 60502, IEC 502, VDE 0276-603 ve BS 6346 standartlarına uygun olarak üretilmektedir.
YVV (NYY) kablonun maksimum çalışma sıcaklığı 70°C olup maksimum kısa devre sıcaklığı 160°C'dir. Bu değerler güvenli kullanım sınırlarını belirlemektedir.
YVV (NYY) kablo kesiti; taşınacak akım değeri, hat uzunluğu, gerilim düşümü, kullanım ortamı ve montaj koşullarına göre belirlenmelidir. Doğru kesit seçimi güvenli ve verimli enerji iletimi açısından önemlidir.
İhtiyacınız olan YVV (NYY) kablo kesiti, damar sayısı ve miktar bilgilerini paylaşarak hızlı şekilde fiyat teklifi alabilir, projenize uygun kablo çözümleri hakkında teknik destek talep edebilirsiniz.
Türkiye's Trusted
Cable Manufacturer

"With 45 years of experience at the heart of the cable industry, we have combined our expertise, knowledge, and industry experience to deliver professional cable solutions under the AVRON CABLE brand."

We manufacture installation cables, power cables, flexible cables, and halogen-free fire-resistant cable solutions in accordance with the highest quality standards.

Avron Cable   Installation Cables   Power Cables   Flexible Cables   Cord Cables   Halogen-Free Cables   Fire-Resistant Cables   Safe Power Transmission H07V-U Cable   H07V-R Cable   H05V-K Cable   NYM Cable   N2XH Cable   H03VV-F Cable   H05VV-F Cable   H07RN-F Cable High-Quality Manufacturing   Standards-Compliant Cables   Reliable Supply   Technical Support   Project-Specific Cable Selection   Cable Supply Across Türkiye
